hoot

Created during Winter 2016, "hoot" is my final product from ME203: Design and Manufacturing. The project combines precision milling, lathing, woodworking, and off-the-shelf parts to create a reimagined hand-held SteadiCam for film-makers.

The project is made from clear anodized aluminum, clear powdercoated 201 stainless steel, and cocobolo wood.

Preliminary sketch

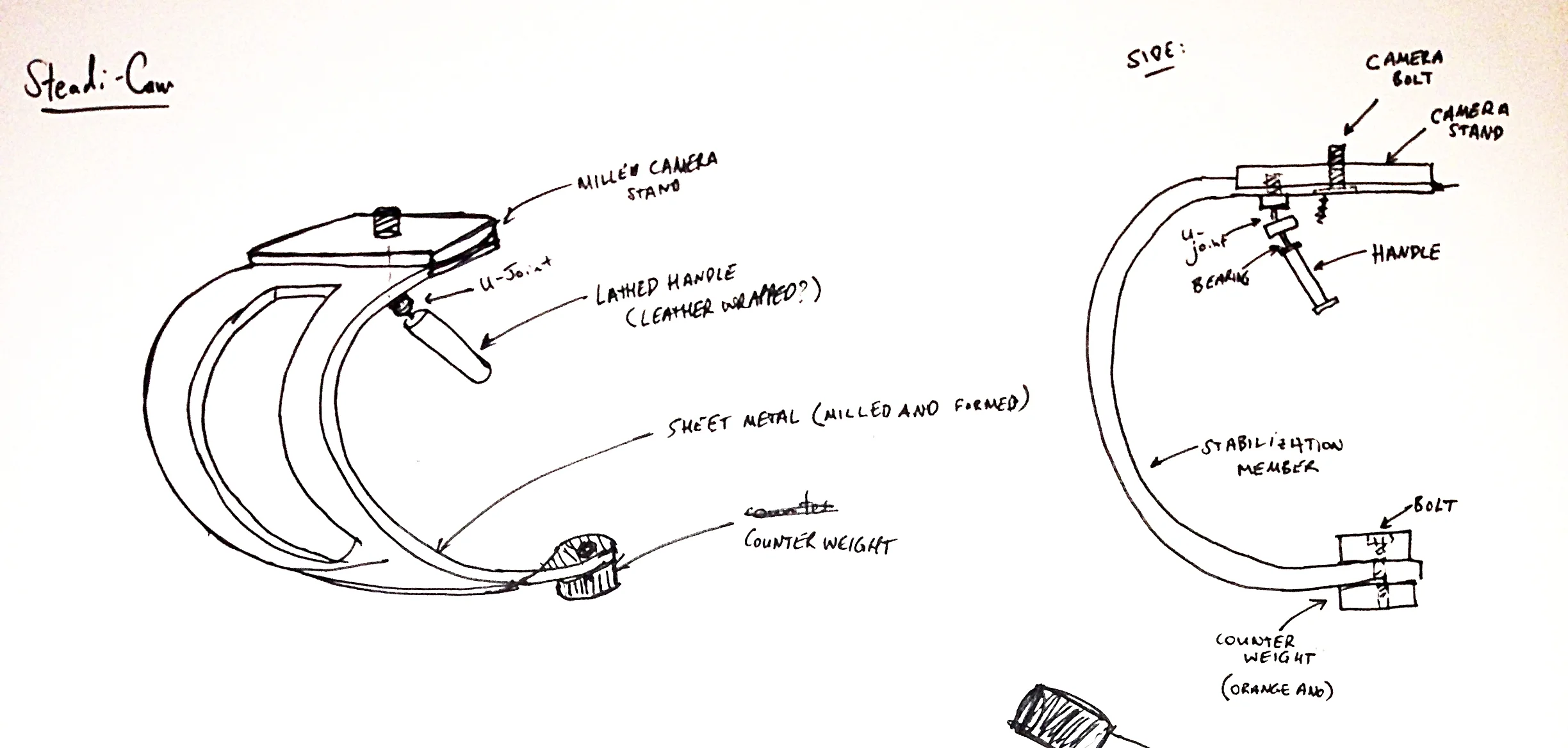

Detailed, early-stage sketch

Feasibility prototype

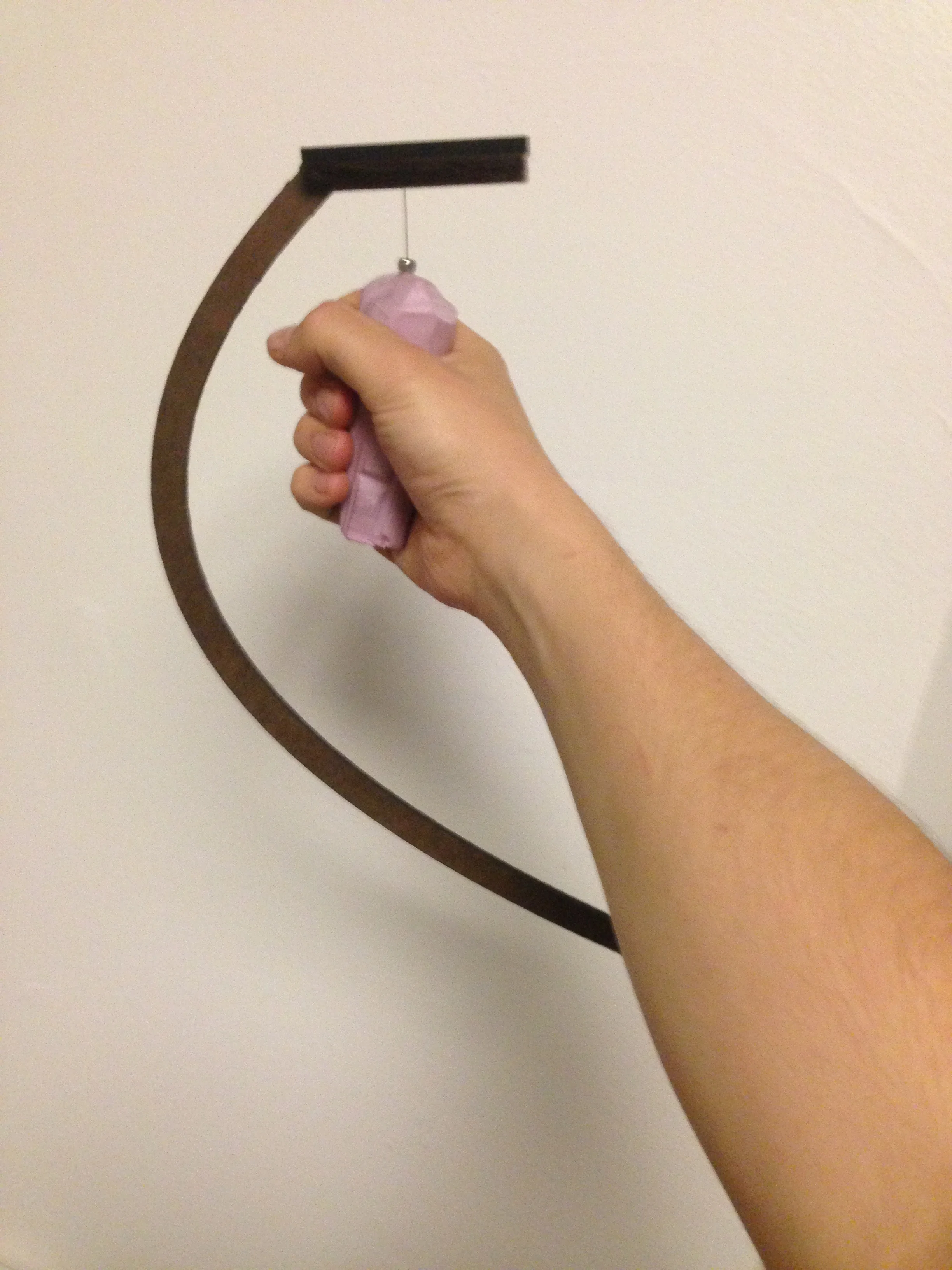

Functionality prototype

Full CAD

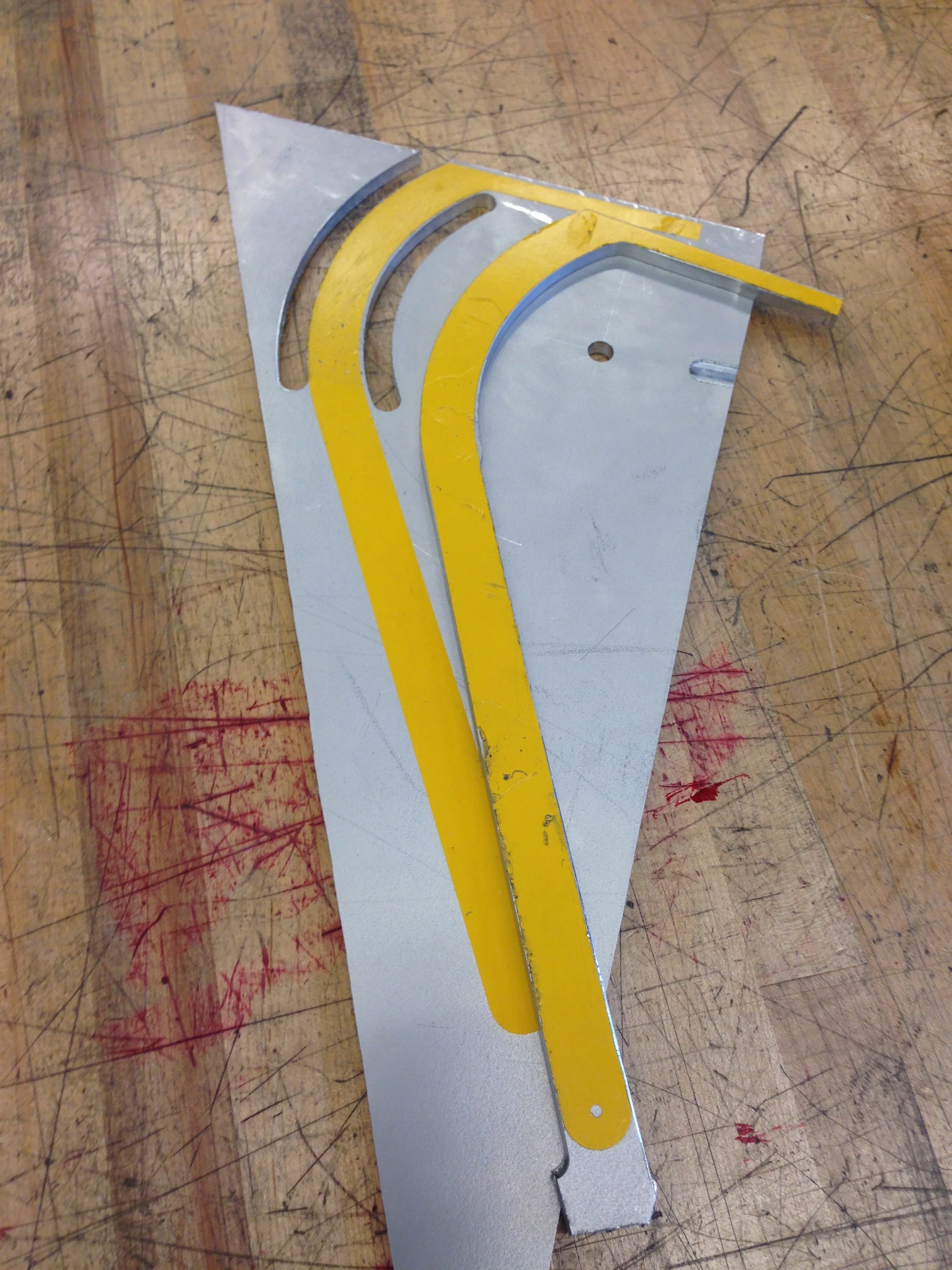

Rotary milling the swing-arm

Tolerance sanity check

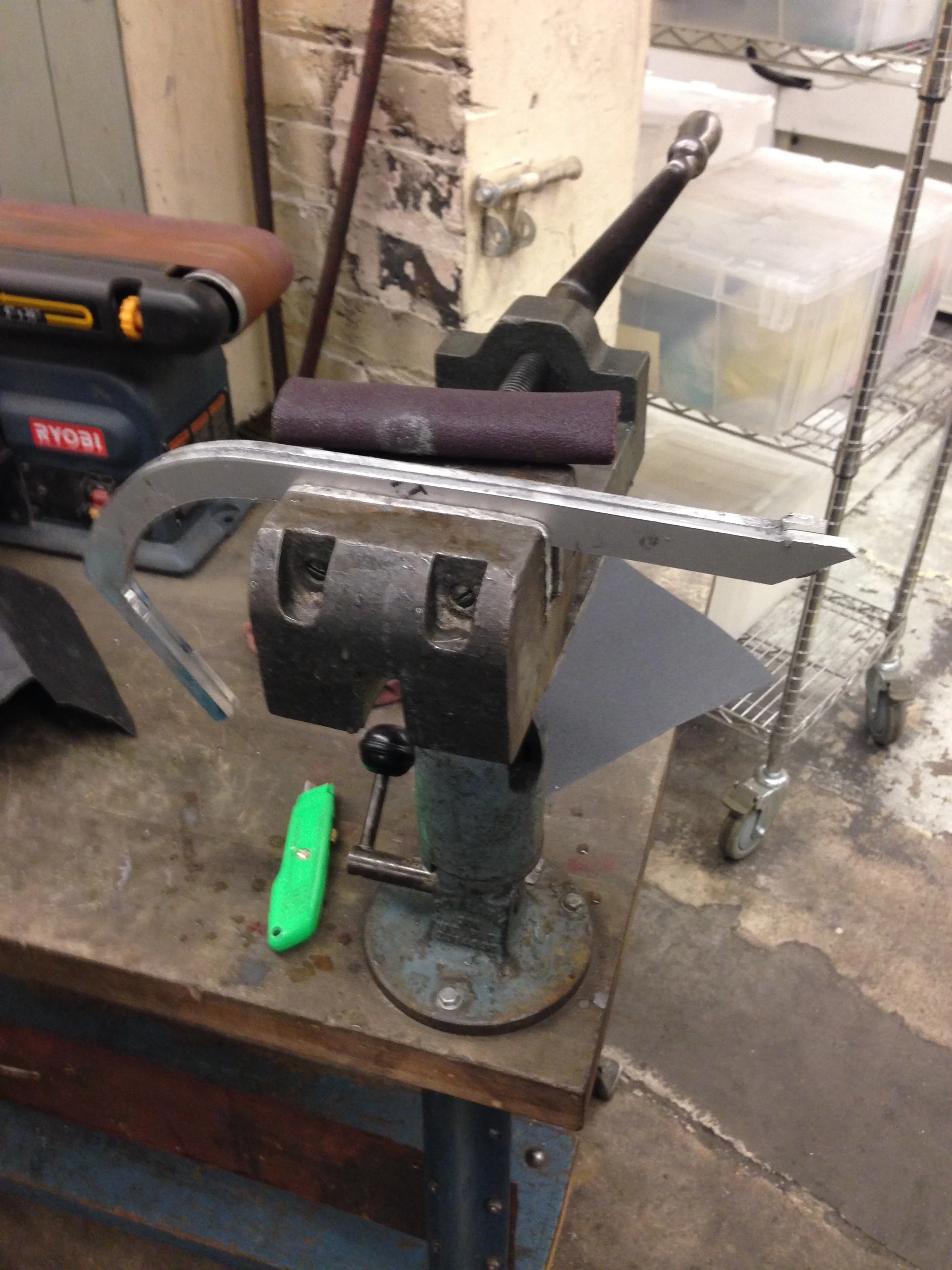

Surface finishing

Threaded insert testing

Insert pull-out testing

Failed insert

Insert testing results

Camera-mount milling

The latenight "IT WORKS" face

Finished product

Film-making in the real world
